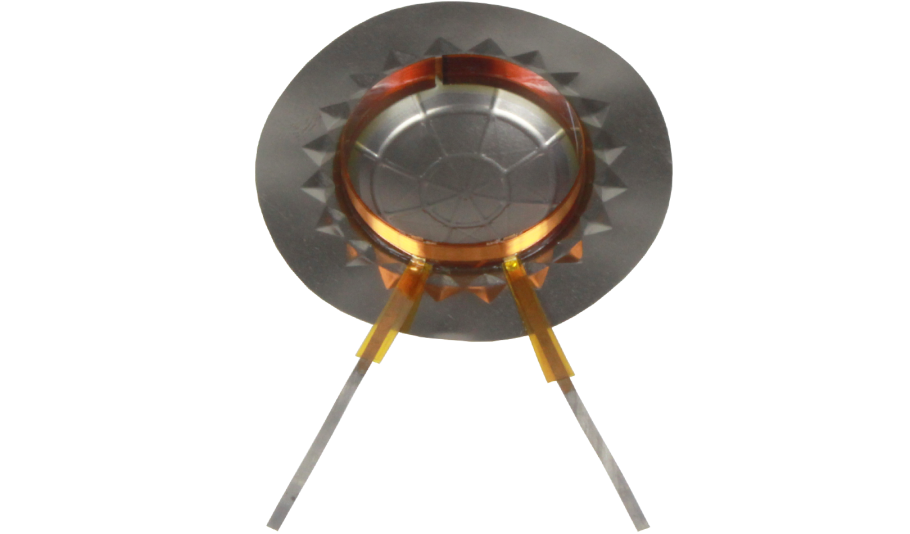

Jbl L1, L3, L5, L7, L60, L80, L90, L20T, L80T, L100T, L20T3, L40T3, L80T3, L100T3 Replacement Titanium Diaphragm 8 Ohm 24.8mm
Jbl L1, L3, L5, L7, L60, L80, L90, L20T, L80T, L100T, L20T3, L40T3, L80T3, L100T3 Replacement Titanium Diaphragm 8 Ohm 24.8mm
You can repair your speaker with high quality copper diaphragm easily and make it brand new with vibrant sound quality. This high quality aftermarket replacement diaphragm features a 0.976378" voice coil and an 8 ohm impedance. It is compatible with various horn drivers from Jbl. Please check your model before ordering to make sure you are getting the correct diaphragm.
Product Specifications
| Outside diameter of the voice coil |
25.8 mm |
| Inside diameter of the voice coil |
24.8 mm |
| Outer diameter of the cone |
44 mm |
| Wire height |
2.7 mm |
| Height complete |
9.5 mm |
| Immersion depth |
4.3 mm |
| impedance |
8 Ohm |
| DCR |
3.2 Ohm |
| Cone material |
Titanium |
| Color |
Silver |
| Contents |
1 Piece |
| Compatibility |
Jbl L1, L3, L5, L7, L60, L80, L90, L20T, L80T, L100T, L20T3, L40T3, L80T3, L100T3 |
|
