McGee 201850, 15", 8 Ohm

Product No.:: 6003238
Shipping time:: This item is no available (abroad may vary)
Stock:: Piece

This product ist not available.

179,90 EUR

incl. 19% tax excl. Shipping costs

Piece:

Add to wish list

Price offer

Ask about product

Product Details

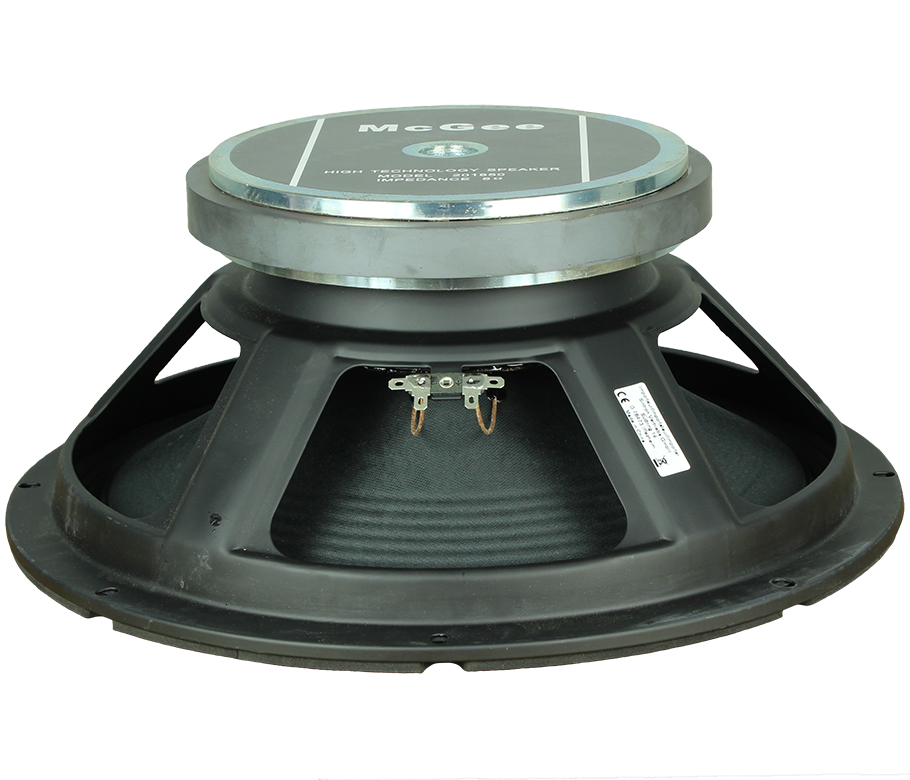

McGee 201850, 15", 8 Ohm

The McGee 201850 high-temp copper wire voice coil is wound on a durable polyimide former, guaranteeing maximum heat resistance and excellent mechanical strength. The McGee 201850 features a specially designed force air ventilation system to ensure proper cooling of the voice coil for long hard play. The McGee 201850 PA Woofer is a powerful upgrade for guitar, bass guitar or sound reinforcement cabinets.

Product Specifications
Nominal Diameter	15"
Power Handling (RMS)	350 W
Power Handling (Max)	700 W
Impedance	8 Ω
Frequency Response	33-3000 Hz
Sensitivity	96 dB
Voice Coil Diameter	63 mm (2-31⁄64")

Thiele-Small Parameters
Resonant Frequency (Fs)	38 Hz
DC Resistance (Re)	6.8 Ω
Mechanical Q (Qms)	6.19
Electromagnetic Q (Qes)	0.55
Total Q (Qts)	0.50
Compliance Equivalent Volume (Vas)	272 ft³

Materials of Construction
Cone Material	Paper
Surround Material	Cloth
Magnet Material	Ferrite

Mounting Information
Overall Outside Diameter	385 mm (15-5⁄32")
Baffle Cutout Diameter	320 mm (12-19⁄32")
Depth	131 mm (5-5⁄32")
Mounting Holes	8

McGee 201850, 15", 8 Ohm
Brand	McGee
Model	201850
Part Number	6003238
Weight	12 kg (26 lbs.)
